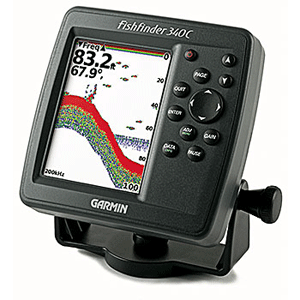

GARMIN COLOR FISHFINDER 340C
- 256-color TFT display, 3.0"W x 4.0"H, 5.0-inch
diagonal, 240 x 320 pixels - CCFL backlight for display and keypad
- Power output: 500 watts (RMS) 4000 watts (peak
to peak), dual frequency 400 watts (RMS) 3200
watts (peak to peak), dual beam - Depth: 1,500 feet (dual frequency), 900 feet (dual
beam) - Choose Dual Frequency 50kHz (45°), 200kHz (10°)
for maximum saltwater performance or Dual
Beam Width 80kHz (45°), 200kHz (14°) for
maximum freshwater performance - Patented transom/trolling mount transducer
- Unit dimensions: 6.3"W x 6.27quot;H x 3.1"D
- Ultrascroll™ high rep rate sonar
- New AutoGain technology to see more fish
- CANet™ proprietary bus allows display and
control of full feature sounder data on Garmin
chartplotter - New sounder design featuring excellent shallow
water performance
- See-Thru® technology: shows weak and strong
returns simultaneously - Water temperature log and graph
- Round flasher display mode
- A-scope
- Whiteline
- Adjustable depth line
- 2X and 4X Automatic and manual zoom
- Water speed capable
- Odometer
- Adjustable keel offset
- Alarms for fish size, shallow water, deep water
and low battery - Battery voltage indication
- NMEA sonar data output
- Power down backup of settings: customer
settings are not lost when the unit is turned off - Pre-loaded with over 15 user-interface
languages
|
| SEE OUR PRICE |
________________________________________________
GARMIN COLOR FISHFINDER 400C
|
| SEE OUR PRICE |
________________________________________________
- Ultra-bright 4" diagonal QVGA display, 320 x 240
pixels - New streamlined user interface offers easy
selection of functions and features - Power output: 500 watts (RMS) 4000 watts (peak
to peak), dual frequency - 400 watts (RMS) 3200
watts (peak to peak), dual beam - Depth: 1,500 feet (dual frequency), 900 feet (dual
beam) - Choose dual frequency transducer 50kHz (45°),
200kHz (10°) for maximum saltwater performance
or dual beam transducer 80kHz (45°), 200kHz
(14°) for maximum freshwater performance - New night mode feature provides optimum
viewing in low light conditions - Backlit keypad for easier operation at night
- Patented transom/trolling mount transducer
- Unit dimensions: 5.72"W x 5"H x 2.73"D
- UltraScroll™ high rep rate sonar provides
lightning-fast screen updates - New AutoGain technology enhances target
visibility - CANet™ proprietary bus allows display and
control of full feature sounder data on Garmin
chartplotters
- See-Thru® technology: shows weak and strong
returns simultaneously - Water temperature log graphically records water
temp data
- Round flasher display mode (in dual beam mode)
- A-scope (in dual frequency mode)
- Whiteline
- Adjustable depth line helps gauge desired
fishing levels and bottom clearance - Split zoom display offers a closer look at fish
targets and bottom structure - 2X, 4X and bottomlock zoom
- Big numbers display lets you view several key
data parameters at a glance - Water speed capable
- Odometer (optional water speed sensor
required) - Adjustable keel offset
- Alarms for fish size, shallow water, deep water
and low battery - Battery voltage indication
- NMEA 0183 sonar numeric data output
- Power down backup of settings: customer
settings are not lost when the unit is turned off
GARMIN COLOR FISHFINDER 300C
The affordable Fishfinder 300C color sounder is just right for recreational anglers who fish
primarily in freshwater lakes.
The 300C has a super bright, high resolution 3.5-inch QVGA color display with improved user
interface, plus UltraScroll™ for screen updates at live-action speeds. The 300C comes with a dual
beam transducer, which provides excellent coverage in shallow waters.
The 300C features the high performance sonar receiver found in most of the Garmin marine lineup.
Other features:
primarily in freshwater lakes.
The 300C has a super bright, high resolution 3.5-inch QVGA color display with improved user
interface, plus UltraScroll™ for screen updates at live-action speeds. The 300C comes with a dual
beam transducer, which provides excellent coverage in shallow waters.
The 300C features the high performance sonar receiver found in most of the Garmin marine lineup.
Other features:
- Power output: 150 watts (RMS) 1200 watts (peak to peak)
- Auto Gain setting adjusts sonar sensitivity automatically
- See-Thru® technology shows weak and strong returns simultaneously
- Round flasher display mode
- Whiteline shows you how thick the bottom is
- 2X and 4X automatic and manual zoom
- Battery voltage indicator
- Single NMEA-0183 output

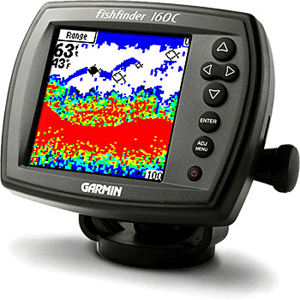

The Fishfinder 160C is an affordable color sonar option for recreational fishermen who primarily fish
freshwater lakes. Fish returns and bottom information are clearly shown on the units bright, sunlight-
readable color display, making it easier for you to scope out your fishing grounds. The Fishfinder
160C offers dual-beam transducer operation for improved shallow water performance. Like all Garmin
fishfinders, the 160C is rugged, waterproof, and able to stand up to the elements.
The Fishfinder 160C also offers Ultrascroll™ which allows boaters to get a much faster refresh rate on
their sonar display. AutoGain, as well as user adjustable gain, is also standard on all of Garmin's new
fishfinders.
Includes dual-beam (14 or 45 deg.) transducer, 900' depth readings.
Portable Model has a suction cup mount transducer and a portable carrying case.
freshwater lakes. Fish returns and bottom information are clearly shown on the units bright, sunlight-
readable color display, making it easier for you to scope out your fishing grounds. The Fishfinder
160C offers dual-beam transducer operation for improved shallow water performance. Like all Garmin
fishfinders, the 160C is rugged, waterproof, and able to stand up to the elements.
The Fishfinder 160C also offers Ultrascroll™ which allows boaters to get a much faster refresh rate on
their sonar display. AutoGain, as well as user adjustable gain, is also standard on all of Garmin's new
fishfinders.
Includes dual-beam (14 or 45 deg.) transducer, 900' depth readings.
Portable Model has a suction cup mount transducer and a portable carrying case.
Cat. No. GM31880
MFGR. No. 010-00682-00
LIST PRICE $265.99
MFGR. No. 010-00682-00
LIST PRICE $265.99
GARMIN COLOR FISHFINDER 160C
________________________________________________
________________________________________________
|
| SEE OUR PRICE |
________________________________________________
|
| SEE OUR PRICE |
GARMIN FISHFINDER 140
The Fishfinder 140 combines a 4-inch grayscale display and Garmins exclusive fishfinder
technology into an entry-level sonar that's perfect for any vessel where space is at a premium.
Fishfinder 140's included dual-beam transducer provides excellent shallow-water performance, and
the wide viewing angle lets you see fish even off the sides of the boat. With an easy-to-ready
grayscale display and backlight, the Fishfinder 140 has one of the sharpest screens for the money.
Fishfinder 140 also offers Ultrascroll™, which refreshes the screen with lightning speed so you
always see the most up-to-date information. You can manually adjust the gain or set to Auto Gain,
which adjusts the level of detail you see automatically.
Includes dual-beam (14 or 45 deg.) transducer, 600' depth readings.
Portable Model has a suction cup mount transducer and a portable carrying case.
technology into an entry-level sonar that's perfect for any vessel where space is at a premium.
Fishfinder 140's included dual-beam transducer provides excellent shallow-water performance, and
the wide viewing angle lets you see fish even off the sides of the boat. With an easy-to-ready
grayscale display and backlight, the Fishfinder 140 has one of the sharpest screens for the money.
Fishfinder 140 also offers Ultrascroll™, which refreshes the screen with lightning speed so you
always see the most up-to-date information. You can manually adjust the gain or set to Auto Gain,
which adjusts the level of detail you see automatically.
Includes dual-beam (14 or 45 deg.) transducer, 600' depth readings.
Portable Model has a suction cup mount transducer and a portable carrying case.
| Garmin Fishfinder/Chartplotter Combinations |
GARMIN GPSMAP 420s, 430s & 440s Fishfinder/Chartplotter Combos
Garmin International is pleased to announce the GPSMAP 400-s series. These sleek new
Garmin plotters are the perfect choice. They feature ultra-bright 4" QVGA displays, built-in
worldwide, U.S. Inland or U.S. Coastal satellite imagery and a new streamlined user interface.
Plug in optional BlueChart® g2 Vision™ cards to add true 3D-view detailed mapping
capabilities (both above and below the waterline), plus helpful auto guidance, high-resolution
photomapping detail, and "real world" aerial photos of ports, harbors, marinas, waterways,
navigation landmarks and other points of interest.
Read up to 1500' with the dual frequency transducer. CANnet capable to share sounder data
with other plotters, and features UltraScroll for high-speed screen updates.
GPSMAP 430SX also includes a GXM 31 XM Satellite Antenna.
Garmin plotters are the perfect choice. They feature ultra-bright 4" QVGA displays, built-in
worldwide, U.S. Inland or U.S. Coastal satellite imagery and a new streamlined user interface.
Plug in optional BlueChart® g2 Vision™ cards to add true 3D-view detailed mapping
capabilities (both above and below the waterline), plus helpful auto guidance, high-resolution
photomapping detail, and "real world" aerial photos of ports, harbors, marinas, waterways,
navigation landmarks and other points of interest.
Read up to 1500' with the dual frequency transducer. CANnet capable to share sounder data
with other plotters, and features UltraScroll for high-speed screen updates.
GPSMAP 430SX also includes a GXM 31 XM Satellite Antenna.
|
