St. Croix Rotating Davits For Sail & Power Boats
Model #400
Ideal for sail and power boats. Rotating Davits incorporate a fixed upper
block welded as a structural component of the upper arm to multiply davit
strength and prevent twisted lines. St. Croix #400 Rotating Davits will lift and
carry 300 lbs.(136 kg.) of boat and motor with a 9:1 lifting ratio. When not in
use, the davits rotate or fold together to clear the stern of your boat. Rotating
Davits are constructed of 1" (25mm) tubular stainless steel and polished to a
mirror finish.
New! Model #488 Rotating Davits - Designed for heavier lifting, these davits are rated for 488lbs. (222 kg) per
pair. 1.25" (32mm) diameter heavy wall tubing combined with a 9:1 lifting ratio make these davits the strongest
St Croix Rotating Davit system available, yet maintain the streamlined style and ease of use of the original St.
Croix Davits. System includes 50ft. of 3/8" lifting line.

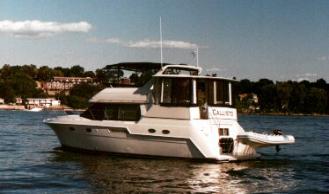

Rotating Davits on Carver 405 - St. Croix Rotating Davits install using a
3" x 3" (7.6cm x 7.6cm) ball and socket deck mount with a 26 degree
pivot and an upper "clam shell" mount. The upper mount attaches to
either a stern rail or a vertical surface. For power boats with an extended
swim platform, optional #401 Platform Mounts are available. The dinghy
is secured in the davits with the use of St. Croix Stainless Steel Ratchet
Straps (Item #242). The design of some boats may require the use of
optional mounting hardware listed in the table below. In addition, we
specialize in designing and fabricating custom mounting brackets.
#400 Rotating Davit
#414 Transom
Mount shown here
is used for mounting
the lower ball and
socket mount to the
transom.
#401 Platform Mount
shown here is used on
extended swim platforms
and provides a secure
mounting area for davits.
Lifting Accessories for a Complete Davit System
Model
Number
Item Name
Item Description
Price
222
D Ring Kit
(Hypalon)
2 "D" ring patches that are glued to the inside of the Hypalon
inflatable. Used to attach the bow lifting sling. Glue not included.
$60.99
223
D Ring Kit (PVC)
2 "D" ring patches that are glued to the inside of the PVC inflatable.
Used to attach the bow lifting sling. Glue not included.
$60.99
219
Eye Bolt Kit
2 eyebolts that are mounted in the transom of the inflatable. Used as a
place to attach the stern lifting sling.
$50.99
220
Lifting Yoke
Stainless steel tubular lifting bracket eliminates the use of stern lifting
slings. Bolts to the inside transom of the dinghy.
$235.99
221
Front Lifting
Points
2 thru-hull eye bolts used for bow lifting points in RIBs only.
$41.99
231
Lifting Lines - 50'
A pair of 5/16" double braid lines - 50' long.  Length needed depends
on your boat.
$68.49
232
Lifting Lines - 75'
A pair of 5/16" double braid lines - 75' long.  Length needed depends
on your boat.
$77.99
233
Lifting Lines -
100'
A pair of 5/16" double braid lines - 100' long.  Length needed depends
on your boat.
$86.99
234
Lifting Sling - 13"
Stainless steel cable slings in 13" length, used to lift the bow and stern
of the tender.
$50.29
235
Lifting Sling - 15"
Stainless steel cable slings in 15" length, used to lift the bow and stern
of the tender.
$50.29
236
Lifting Sling - 17"
Stainless steel cable slings in 17" length, used to lift the bow and stern
of the tender.
$50.29
237
Lifting Sling - 19"
Stainless steel cable slings in 19" length, used to lift the bow and stern
of the tender.
$50.29
238
Lifting Sling - 21"
Stainless steel cable slings in 21" length, used to lift the bow and stern
of the tender.
$50.29
240
Hand Winch
Winch has a 6:1 ratio and a removable handle that floats. Can be
added to davit arms to increase the lifting ratio.
$260.49
242
Ratchet Tie
Down Restraints
*See picture
above
Black 1" (25mm) wide nylon web with stainless steel ratchets and
hooks. Used to secure the load in the davits. Straps are 5' each 5'
(1.53m) long. Highly recommended for use with all davit systems.
$80.99
Optional Mounting Hardware for Rotating Davits
The design of some boats may require the use of additional mounting hardware.
Model
Number
Item Name
Item Description
Price
401
Platform Mount
*See photo above
Tubular stainless steel mount that allows mounting of the Rotating
Davits on an extended swim platform.
$679.99
404
Removable
Platform Mount
Removable tubular stainless steel mount that allows mounting of
Rotating Davits on extended swim platforms. Allows for complete
removal of the mount and the davits.
$864.99
412
1 1/4" (32mm)
Rail Adapter
Stainless steel upper mount for 1 1/4" (32mm) rails.
$36.49
414
Transom Mount
for Rotating
Davits * See
pictureabove
A 90 degree stainless steel bracket that allows mounting of the ball
and socket mount on the transom.
$141.99
415
Transom Handles
A tubular handle that allow mounting of Rotating Davits to a vertical
transom surface.( Mainship Trawler 39').
$132.99
416
Corner Seat
Mount
Allows for #400 Rotating Davits to be mounted on sailboats with
corner seats typical of Catalina and Hunter.
$378.99
417
Angled Transom
Handles
Similar to #415 transom handles except used when the transom is
too short for the standard handle.  Provides a place to attach the
upper mount of the davits.
$198.99
Specifications for St. Croix Rotating Davits
Model
Number
Lifting
Ratio
Arm Reach x
Height
Ball & Socket
Lower Mount
Dims.
Weight Rating
per Pair
Davit
Tube Dia.
Lifting
Line Dia.
Req'd.
Price
400
9:1
40"  Reach x
60" High
(101.6 x 152.4
cm)
3" x 3"
( 7.6 x 7.6 cm)
300 lbs.
( 136 kg.)
1"
(25mm)
5/16"
$1419.99
488
9:1
41" Reach x
60" High
(104.4 x 52.4
cm)
3" x 3"
( 7.6 x 7.6 cm)
488 lbs.
(222 kg)
1 1/4"
(32mm)
3/8"
$2239.99
