Multifunctional Displays and Systems

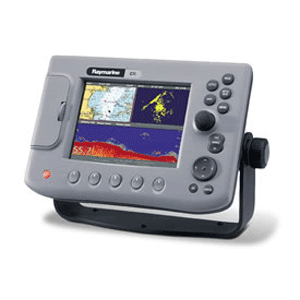

| C-SERIES DISPLAYS....Configure any C-Series display as single function stand-alone chartplotter,digital fishfinder or radar |
Screen Size:
C70 6.5"
C80 8.4"
C120 12.1"
Screen Type Color
Cartography Navionics CF Gold
Antenna Sold separately
WAAS Yes
Waypoints/Routes 1000/100
Waterproof Rating Waterproof
Product Dimensions:
C70 7.0x10.0x3.5
C80 8.4x11.2x3.5
C120 10.5x14.0x3.5
Warranty 2 years
C70 6.5"
C80 8.4"
C120 12.1"
Screen Type Color
Cartography Navionics CF Gold
Antenna Sold separately
WAAS Yes
Waypoints/Routes 1000/100
Waterproof Rating Waterproof
Product Dimensions:
C70 7.0x10.0x3.5
C80 8.4x11.2x3.5
C120 10.5x14.0x3.5
Warranty 2 years
- Direct Sunlight Viewable 256 color
displays - Intuitive with easy to use
commands. Simply page-through
your choice of displays - Digital Sounder option that delivers
true hands-off operation. - State of the art plug and play radar
options to 10 kw. - Ability to tie-in autopilots and
SeaTalk instruments for the ultimate
single-station nav center.
|
Uses:
Cartography
Cartography

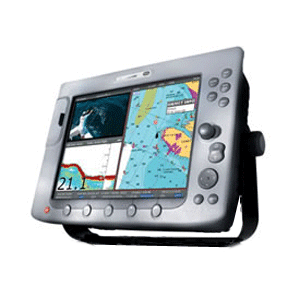

E-SERIES DISPLAYS....Multifunction Multi-Display Systems
| High Speed SeaTalk hs High Speed Network Allows Up to 8 Peripherals |
Screen Type: Color
Screen Size: 8.4" & 12.1"
Cartography: Navionics
Platinum CF
or Gold CF
Antenna: Sold
Separately
WAAS: Yes
Waypoints/Routes: 1000/100
Product Dimensions:
E80 8.3x11.2x5.3
E120 10.4x14.0x5,5
Warranty: 2 years
Screen Size: 8.4" & 12.1"
Cartography: Navionics
Platinum CF
or Gold CF
Antenna: Sold
Separately
WAAS: Yes
Waypoints/Routes: 1000/100
Product Dimensions:
E80 8.3x11.2x5.3
E120 10.4x14.0x5,5
Warranty: 2 years
- Big screen displays can be used
anywhere onboard - Advanced chartplotting with
Navionics Platinum cartography - Digital Sounder option with up to
1 kw of power - Advanced radar options with
MARPA capability - Keep track of instruments & data
using NMEA 2000 & SeaTalk
Uses:
Cartography
Cartography
|
* System Packs Include...
SeaTalk Crossover Coupler -SeaTalk
Crossover Coupler - the best way to start your
new system.start your new system. the best
way to start your new system.
SeaTalk Crossover Coupler -SeaTalk
Crossover Coupler - the best way to start your
new system.start your new system. the best
way to start your new system.
*C120 System Pack Includes: Display Unit, Raystar 125 GPS antenna and DSM300 Digital Sounder module.
WIRELESS SmartController
_________________________
_________________________
SmartController Features:
- A crisp, high contrast 64 x 127 dot matrix display
- Backlit display and keypad
- Up to eight user definable data pages
- Single, dual or four line data displays
- Graphical CDI (Course Deviation Indicator) display
- Keylock security
- Rechargeable via SeaTalk network
- Up to 32 feet (10 meters) wireless operating range
from the base station - Signal strength indicator
- Pre-registered each unit leaves the factory already
registered to the base station
______________________________
Cat. No. RM5023
Model No. E15023
LIST $575.00
Model No. E15023
LIST $575.00
| Cat. No. RM5008 Model No. E05008 LIST $199.00 |

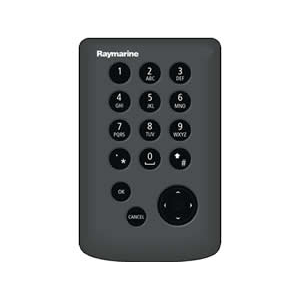

ALPHA NUMERIC KEYPAD
SeaTalk Alphanumeric Keypad allows
rapid entry of waypoints, routes,
names and more.
enables rapid entry of waypoints,
enables rapid entry of waypoints,
routes, and names.
routes, and names.
configuration allows the keypad to sit
surface mounted like ST40 or ST60
flush like a C or E-Series display, or
series instruments.surface mounted
like ST40 or ST60 series instruments.
rapid entry of waypoints, routes,
names and more.
enables rapid entry of waypoints,
enables rapid entry of waypoints,
routes, and names.
routes, and names.
configuration allows the keypad to sit
surface mounted like ST40 or ST60
flush like a C or E-Series display, or
series instruments.surface mounted
like ST40 or ST60 series instruments.
______________________________
| Turn your E-series display into a powerful onboard observation system: |
CAM 50
CAM 100
____________________________
Network, Cables and Accessories
|
System Components
____________________________
_______________________________________
______________________________

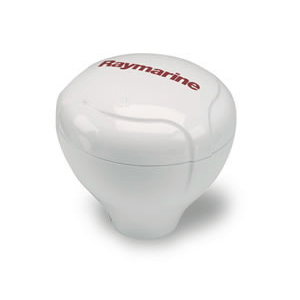

RAYSTAR 125 Satellite Differential GPS
| Cat. No. RM2043 Model No. E32043 LIST $365.00 |
| Cat. No. RM2102 Model No. E12102 LIST $891.00 |
12 Channel Satellite Differential GPS sensor. Configurable for
SeaTalk or NMEA 0183 Output. Pole, surface, or rail mountable
Compact and accurate the Raystar 125 Satellite Differential GPS
Receiver provides pinpoint accuracy to Raymarine's C-Series and
E-Series Multifunction displays. The Raystar 125 outputs either
SeaTalk or NMEA 0183, and is fully compatible with Raymarine
SeaTalk instruments and autopilots.
A self contained waterproof GPS receiver and antenna combined,
the Raystar 125 delivers accuracy better then 3 meters by decoding
GPS correction signals from the WAAS (Wide Area Augmentation
System.)
SeaTalk or NMEA 0183 Output. Pole, surface, or rail mountable
Compact and accurate the Raystar 125 Satellite Differential GPS
Receiver provides pinpoint accuracy to Raymarine's C-Series and
E-Series Multifunction displays. The Raystar 125 outputs either
SeaTalk or NMEA 0183, and is fully compatible with Raymarine
SeaTalk instruments and autopilots.
A self contained waterproof GPS receiver and antenna combined,
the Raystar 125 delivers accuracy better then 3 meters by decoding
GPS correction signals from the WAAS (Wide Area Augmentation
System.)

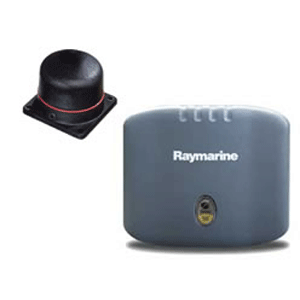

Gyro Stabilized fluxgate compass system, specifically designed for
use with the Pathfinder Plus range of radars and chartplotters.
the same gyro stabilized heading information provided by our and
Raychart displays. The Pathfinder Smart Heading Sensor delivers the
same gyro stabilized heading information provided by our Autohelm
Series 150G and 400G autopilot Corepacks.
Autohelm Series 150G and 400G autopilot Corepacks.
Features:
use with the Pathfinder Plus range of radars and chartplotters.
the same gyro stabilized heading information provided by our and
Raychart displays. The Pathfinder Smart Heading Sensor delivers the
same gyro stabilized heading information provided by our Autohelm
Series 150G and 400G autopilot Corepacks.
Autohelm Series 150G and 400G autopilot Corepacks.
Features:
- Provides fast, stable and accurate heading data over NMEA
0183 - Significantly improves performance of MARPA. Improves target
acquisition, retention and calculation of target tracking data,
especially when conditions deteriorate. - Easy to install, and set up
- Easy to calibrate using soft keys and menu
- Easy compass alignment to COG
- Improves autopilot performance
Pathfinder Smart Heading Sensor

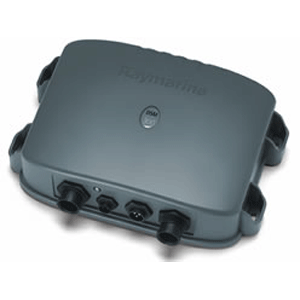

DSM 300 Digital Sounder Module
- Dual frequency operation with
a full range of high
performance transducers - HD Digital receiver technology
virtually eliminates clutter and
automatically targets fish - Bottom lock mode with 2x, 4x
and 6x zoom - A-scope real time sonar
Frequency: 50/200
Power: 600W or 1kw
Volts: 10-32 VDC
Draw: 30w
Waterproof: Waterproof
Product Dims: 7.4x9.5x2.5
Warranty: 2 Years
Power: 600W or 1kw
Volts: 10-32 VDC
Draw: 30w
Waterproof: Waterproof
Product Dims: 7.4x9.5x2.5
Warranty: 2 Years
| Cat. No. RM3069 Model No. E63069 LIST $780.00 |
|
DSM 300 Accessories:
