SmartPilot Autopilot Systems
RAYMARINE SMARTPILOT TECHNOLOGY

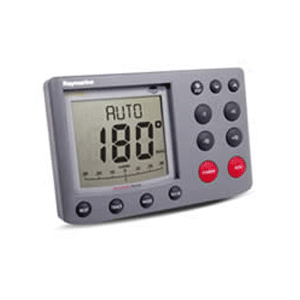

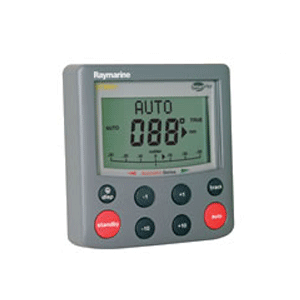

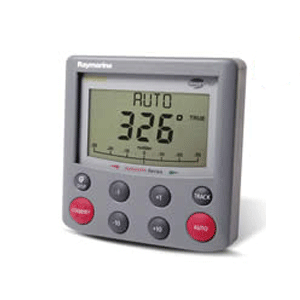

DISPLAY UNITS
COREPACKS
ST7002
ST8002
ST6002
- Easy to read LCD displays with built-in
rudder angle indicator - Select the control size and style that is right
for your application - AutoSeastate, AutoTrim and Wind Trim
automatically adjust for wind and sea
conditions - Course Memory lets you return to previous
course with one button press - SeaTalk Networking for connecting multiple
remote autopilot displays, instruments and
Raymarine integrated navigation systems - AutoTrack and Vane Mode for advanced sail
boat performance

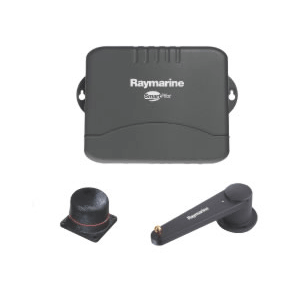

- Consists of course computer, fluxgate
compass and rudder feedback - Simply match Corepack "Type" and Drive
"Type" - "G" versions include built-in Rate Gyro and
AST
DRIVE UNITS

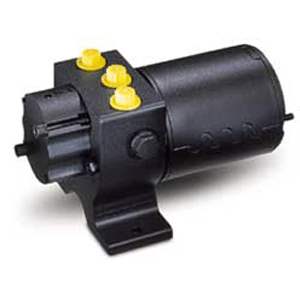

Hydraulic Pumps
Hydraulic Pumps

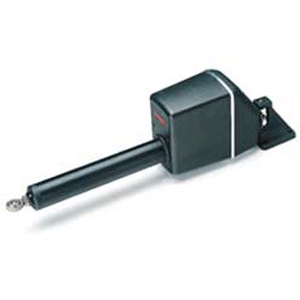

Linear Drives
- Type 1 fits cylinders between 4.9 & 10.5
cubic inches - Type 2 fits cylinders between 14 & 21 cubic
inches
- Available for mechanical steering systems
____________________________________________________

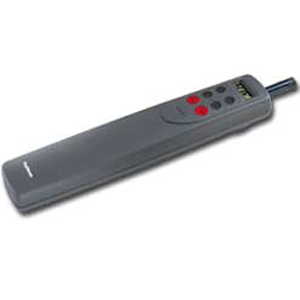

TILLER PILOTS
ST Series
S1 and S1 Grand Prix
- Easy-to-use controls
- Efficient, intelligent steering for optimum power conservation
- WindTrim control in WindTrim mode
- Integral fluxgate compass
- Auto Tack automatically turns vessel at predetermined angle
- Wind Vane mode maintains course relative to apparent wind
- Raymarine SeaTalk compatible for seamless integration with
Raymarine instruments - Compatible with optional wireless handheld remote
- Additional control heads can be added
|
|
___________________________________________________

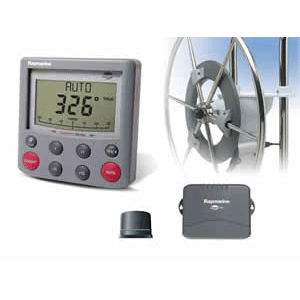

S1 WHEEL PILOT
S1000 WIRELESS AUTOPILOT SYSTEM
| Cat. No. RM2169 Model No. E12169 LIST $1,185.00 |
| Cat. No. RM2180 Model No. E12180 LIST $1,425.00 |
- Convenient wheel mounted cockpit autopilot for sailing vessels
- Fully enclosed MkII wheel-drive delivers below deck autopilot
performance - Simple clutch engagement mechanism
- Remotely mounted ST6002 control head
- For wheel steered sailing vessels up to 18,700 lbs.
- No wires - no plugs - utilizes the latest wireless technology
- Smooth course changes regardless of boat speed
- Angler's copilot with automatic fishing patterns
- Intuitive, menu-driven interface
- No rudder reference is required
- Designed for hydraulically steered vessels up to 25'
- For steering systems with a capacity of 5 to 8 cubic inches
___________________________________________________
| SmartPilot ST6002 for Mercury Verado |
| Cat. No. RM1874 Model No. E12184 LIST $3,100.00 |
- Autopilot system for single or twin Mercury Verado
Outboards - Complete system in one box
- SmartPilot AST (Advanced Steering Technology)
- Built-in Rate Gyro Sensor
- AutoLearn automatically learns your boat's handling
characteristics
| Cat. No. RM1502 Model No. E15023 LIST $575.00 |
| Cat. No. RM5024 Model No. E15024 LIST $460.00 |

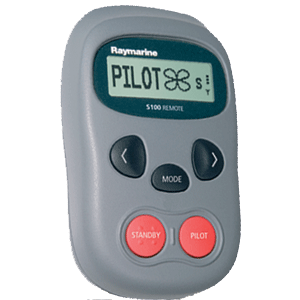

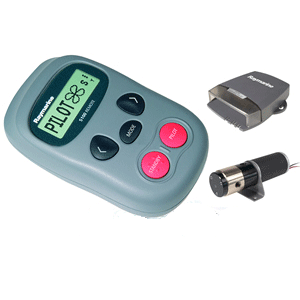

S100 WIRELESS REMOTES
| SeaTalk Autopilot Wireless Remote |
| SmartController Wireless Remote & Instrument Repeater |
- Delivers freedom of wireless control to any SeaTalk autopilot
- Graphical autopilot status indicator
- Up to 32 feet wireless operating range from base station
- Signal strength indicator
- 5 button ergonomic keypad 7 intuitive menu structure
___________________________________________________
|
|
- Available with either ST6002 or ST8002 Display
Units - Prepackaged for convenience and value
- Systems to fit most popular small and mid sized
boats - Your choice of standard or "G" corepacks

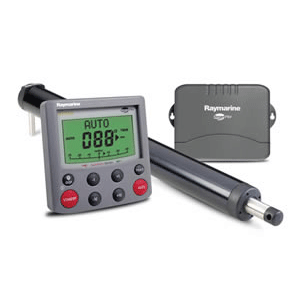

SMARTPILOT PREPACKAGED SYSTEMS
ST6002
ST8002
ST6002 SmartPilot Type 1 Systems:
ST8002 SmartPilot Type 1 Systems:
____________________________________________________
BUILDING A CUSTOM SMARTPILOT
SYSTEM ....AS EASY AS 1, 2, 3!
1. Select a Drive Unit... for power boats with
hydraulic steering, match the appropriate pump
size or for sailboats with mechanical steering,
select the Linear Drive unit for the the appropriate
vessel displacement.
SYSTEM ....AS EASY AS 1, 2, 3!
1. Select a Drive Unit... for power boats with
hydraulic steering, match the appropriate pump
size or for sailboats with mechanical steering,
select the Linear Drive unit for the the appropriate
vessel displacement.
|
|
